Sheet Lock Stud

Category: Plastics

Sub Category: Sheets

Company Name: Doha Waterproof Factory

Brand Name:

City: Doha

Concrete, the world’s most commonly used
construction material, requires protection from
aggressive factors, whether it is used to construct
a sewer pipe, tunnel, wall in sewerage insulation,
or civil foundations in salty or corrosive soils.

Doha Waterproof Factory (DWF) was established
in Qatar 2014 as the first and the leading
manufacturer and supplier of high quality plastic
lining systems (T-Lock, V-stud and plain sheet)

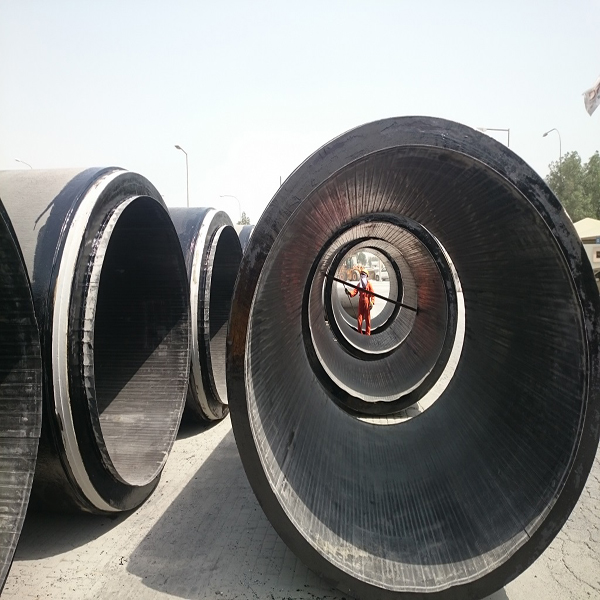

that are widely used for protection of concrete
pipes and structures in infrastructure development
project throughout the gulf region.

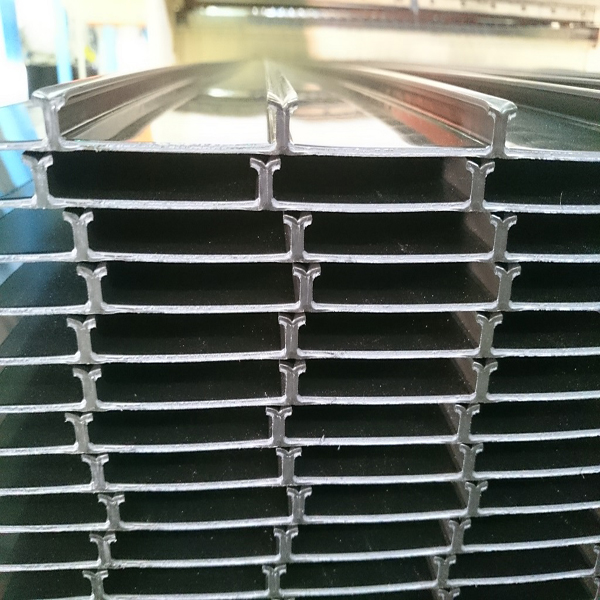

Concrete Embedment Liners are thick sections
of HDPE with a number of studs protruding from
one side. The embedment liner is fastened to the
inside of forms before concrete is poured
to create a surface that is lined with plastic.

The concrete flows around the studs anchoring
the sheet firmly in place. The studs securely fasten
the sheeting to the surface of the concrete.
The result is a protective coating of polymer
with very high pullout resistance. Concrete
Embedment Liners are ideal for protecting
concrete from harsh environments.

The thick sections of polymer are resistant to
most acids, bases, hydrocarbons, vapors and
microbiological materials, which can degrade
concrete over time.

PRODUCT DETAILS:
• T-Lock, V-Stud and Plain Sheet
Product Specifications:
• Material: Polyethylene
HDPE-LLDPE
• Maximum width: 2000 mm
• Length: Custom made
• Thickness:
T-Lock: from 1.5 to 4 mm
V-stud: from 1.5 to 8 mm
Plain Sheet: from 1 to 8 mm
